During single measurement of blood pressure and pulse rate for AFib detection.

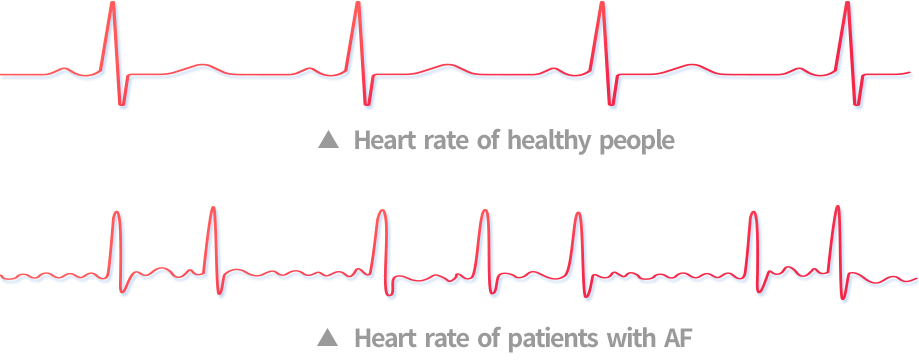

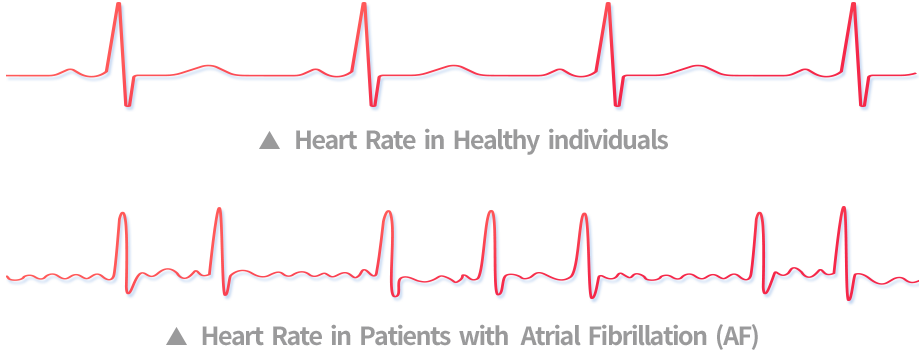

By precisely recording the electrocardiogram（ECG） and utilizing patented algorithms, it accurately and scientifically identifies arrhythmic murmurs, aortic murmurs, and coronary artery murmurs. These three types of murmurs are comprehensively analyzed to assess the risk of AFib.

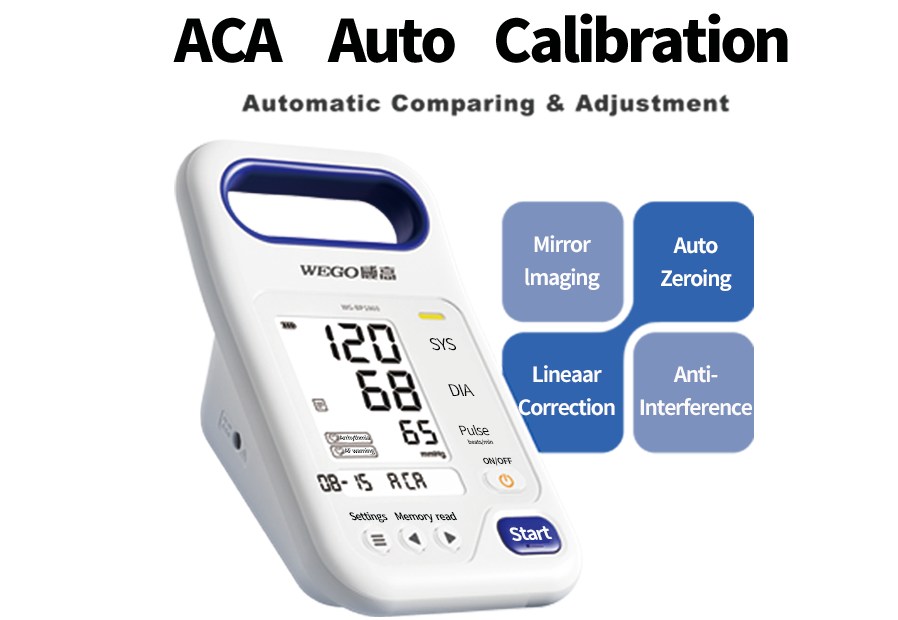

Power-on Auto Calibration (ACA): Intelligent system pressure of AI self-check ,
without additional calibration .

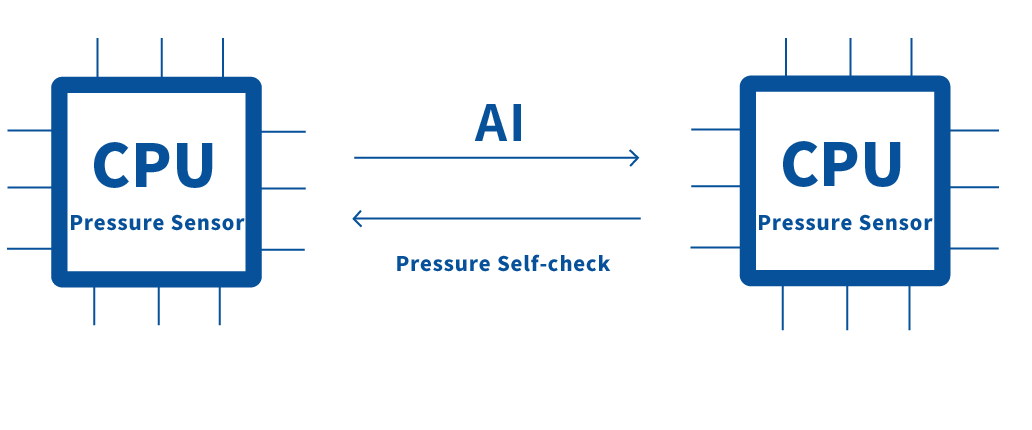

Dual CPUs Design: Imported pressure sensors with intelligent , dual detection ,
ensure precise measurement .
AI Algorithm: Equipped with temperature and pressure compensation, reducing environmental interference during use
Dual Sensors and Dual CPU Design: Ensures calculation accuracy
Power-on Automatic Calibration(ACA): Ensures accurate measurements every time
Equipped with imported high-precision pressure sensors for enhanced stability
360° Rubberized Anti-Collision Design: Effectively protects the device from damage
Shockproof| Drop-Resistant|IP21 Waterproof
Equipped with suspected AF detection for convenient risk screening
Clinical-grade pulse measurement range(30-240 bpm)
Medical-grade durable design with a lifespan of up to 10 years

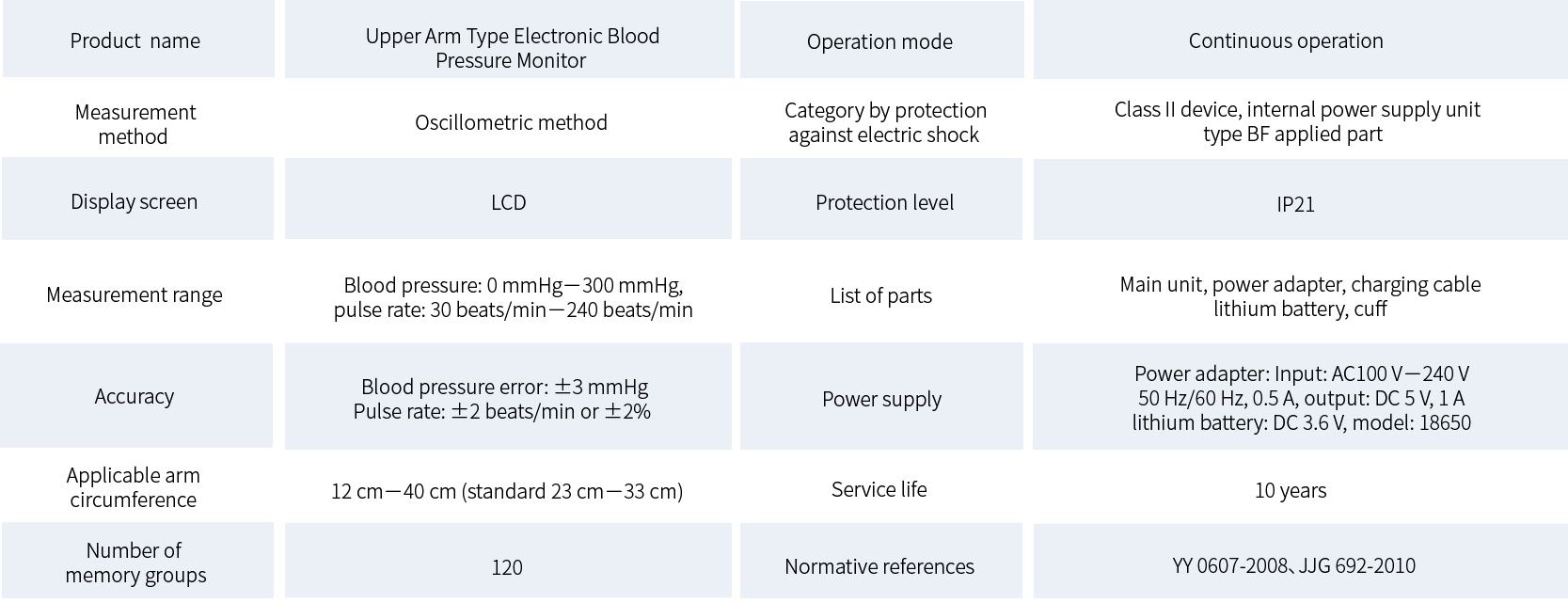

| Product name | Upper Arm Type Electronic Blood Pressure Monitor | Operation mode | Continuous operation |
| Measurement method | Oscillometric method | Category by protection against electric shock | Class II device,internal power supply unit，type BF applied part |
| Display screen | LCD | Protection level | IP21 |
| Measurement range | Blood pressure:0 mmHg-300 mmHg, pulse rate:30 beats/min-240 beats/min | List of parts | Main unit,power adapter,charging cable lithium battery, cuff |
| Accuracy | Blood pressure error: ±3 mmHg Pulse rate: ±2 beats/min or ±2% | Power supply | Power adapter: Input:AC100V-240V ，50 Hz/60 Hz, 0.5 A, output: DC 5V, 1A，lithium battery: DC 3.6 V, model:18650 |
| Applicable arm circumference | 12 cm-40 cm (standard 23 cm-33 cm) | Service life | 10 years |
| Number of memory groups | 120 | Normative references | YY 0607-2008、JJG 692-2010 |
